Gray-Scott Model at F 0.0500, k 0.0710

These images and movie demonstrate the behavior of the Gray-Scott reaction-diffusion system with σ=Du/Dv=2 and parameters F=0.0500, k=0.0710.

Solitons pulse about 5 times before reaching the visible limit of ±3×10-6.

Categories: Munafo ν; Wolfram 2      (glossary of terms)

                increase F










decrease k

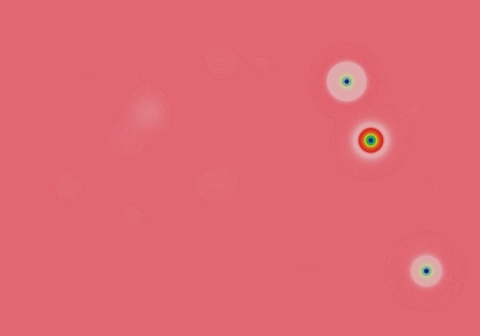

after 300 tu

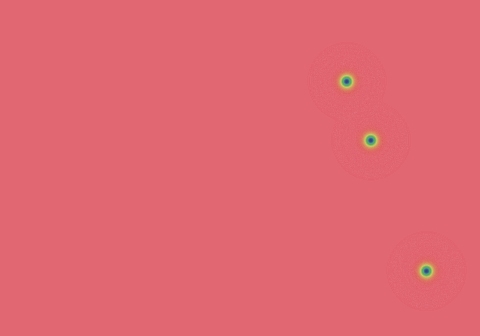

after 1,500 tu

15 frames/sec.; each fr. is 100 iter. steps = 50 tu; 1800 fr. total (90,000 tu)










increase k

after 5,500 tu after 22,500 tu after 90,000 tu
                decrease F
(Click on any image to magnify)

In these images:

Wavefronts and other moving objects have decreasing u values (brighter color) on the leading edge of the blue part of the moving object, and increasing u (light pastel color) on the trailing edge. This is true even for very slow-moving objects — thus, you can tell from the coloring what direction things are moving in.

''tu'' is the dimensionless unit of time, and ''lu'' the dimensionless unit of length, implicit in the equations that define the reaction-diffusion model. The grids for these simulations use Δx=1/143 lu and Δt=1/2 tu; the system is 3.2 lu wide. The simulation meets itself at the edges (periodic boundary condition); all images tile seamlessly if used as wallpaper.
