Gray-Scott Model at F 0.0540, k 0.0690

These images and movie demonstrate the behavior of the Gray-Scott reaction-diffusion system with σ=Du/Dv=2 and parameters F=0.0540, k=0.0690.

Solitons oscillate a few times before reaching the visible limit of ±3×10-6. Close pairs and triads drift apart very slowly; drift speed diminishes exponentially with distance.

Categories: Munafo ν; Wolfram 2      (glossary of terms)

                increase F










decrease k

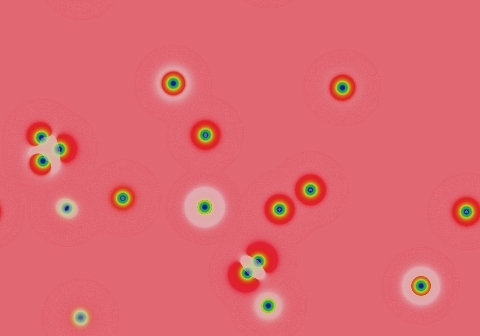

after 351 tu

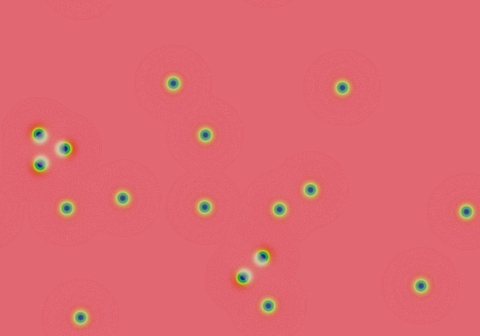

after 1,755 tu

15 frames/sec.; each fr. is 117 iter. steps = 58.5 tu; 1800 fr. total (105,300 tu)










increase k

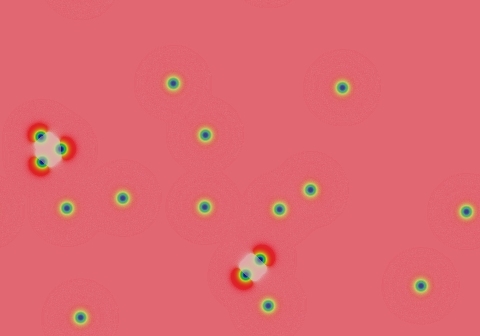

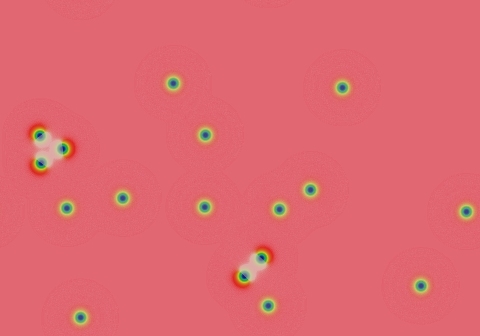

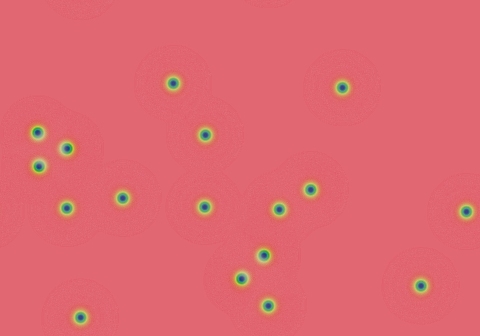

after 6,435 tu after 26,325 tu after 105,300 tu
                decrease F
(Click on any image to magnify)

In these images:

Wavefronts and other moving objects have decreasing u values (brighter color) on the leading edge of the blue part of the moving object, and increasing u (light pastel color) on the trailing edge. This is true even for very slow-moving objects — thus, you can tell from the coloring what direction things are moving in.

''tu'' is the dimensionless unit of time, and ''lu'' the dimensionless unit of length, implicit in the equations that define the reaction-diffusion model. The grids for these simulations use Δx=1/143 lu and Δt=1/2 tu; the system is 3.2 lu wide. The simulation meets itself at the edges (periodic boundary condition); all images tile seamlessly if used as wallpaper.
