Gray-Scott Model at F 0.0100, k 0.0490

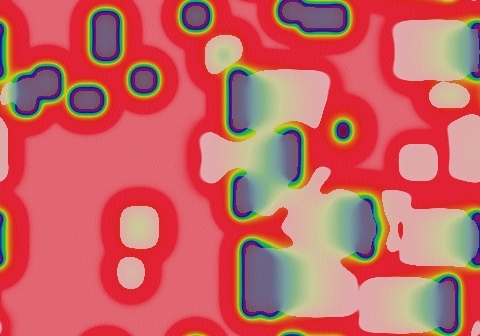

These images and movie demonstrate the behavior of the Gray-Scott reaction-diffusion system with σ=D_u/D_v=2 and parameters F=0.0100, k=0.0490.

Spots and wave fronts grow and split into "C" shapes (small curved wavefronts). Edges continue to break up into smaller spots, "C" shapes and proto-spirals.

This simulation was performed with the same starting pattern as that to the immediate west; note the initial similarity, and substantial differences after about the first 500 tu.

Categories: Pearson α; Wolfram 3 (glossary of terms)

	increase F
decrease k	15 frames/sec.; each fr. is 22 iter. steps = 11 tu; 1801 fr. total (19,811 tu)	increase k

(Click on any image to magnify)

In these images:

Color indicates level of u, ranging from purple (lowest u values) through blue, aqua, green, yellow and pink/red (highest u values)
Areas where u is increasing are lightened to a light pastel tone; where u is decreasing the color is vivid.
In areas where u is changing by less than ±3×10^-6 per tu, an intermediate pastel color is seen. This includes areas that are in steady state or equilibrium.

Wavefronts and other moving objects have decreasing u values (brighter color) on the leading edge of the blue part of the moving object, and increasing u (light pastel color) on the trailing edge. This is true even for very slow-moving objects — thus, you can tell from the coloring what direction things are moving in.

''tu'' is the dimensionless unit of time, and ''lu'' the dimensionless unit of length, implicit in the equations that define the reaction-diffusion model. The grids for these simulations use Δx=1/143 lu and Δt=1/2 tu; the system is 3.2 lu wide. The simulation meets itself at the edges (periodic boundary condition); all images tile seamlessly if used as wallpaper.
